State Machine

Definition

A state machine (also known as finite-state machine, FSM, or SM) is a model that defines all the possible states of a system, the events that trigger a transition from one state to another, and the actions that are performed when these transitions occur.

A very simple example of such a system is a lamp. It has:

• 2 states: off and on;
• 1 event: a button press;
• 2 actions: turn light on and turn light off.

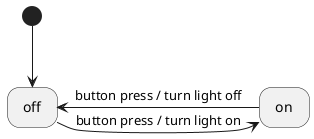

State machines are often represented by diagrams. Here is the state machine of our lamp, under the form of a UML state diagram:

The state machine of a lamp

The diagram shows that:

• the initial state (i.e. the active state when the machine starts) is off (as pointed to by the black dot);
• pressing the button while the off state is active executes the turn light on action and activates the on state;
• pressing the button while the on state is active executes the turn light off action and activates the off state.

When to use a state machine

When suitable, state machines help you:

• improve the readability (and thus maintainability) of your code;
• organize your code (by putting each state in its own file, for example);
• visualize what your code is doing at a high level (particularly if it is backed by a state diagram and/or a transition table);
• log meaningful messages to keep track of the state of your program.

State machines are particularly well suited to implement the event-processing part of an event-driven architecture.

If your code defines many event-handling functions like the following one, it would most likely benefit from the introduction of a state machine:

void on_button_press()
{
    if(is_power_on)
    {
        if(motor_is_running)
        {
            //...
        }
        else if(5 < temperature_degc && temperature_degc < 50)
        {
            //...
        }
    }
    else
    {
        //...
    }
}

What Maki can do for you

Admittedly, you don't need a library to implement a state machine. A couple of enums and switches can do the trick for simple cases. However, when things get complicated or when you need more advanced features, some sort of state machine framework becomes very handy, if not mandatory.

One of the most important things a library such as Maki provides is a transition table.

When you set up a state machine with Maki, you have to write a transition table. A transition table is a direct representation of a state diagram in your code. Here is the transition table of our lamp, written with Maki:

constexpr auto transition_table = maki::transition_table{}
    //source,    target, event,                     action
    (maki::init, off)
    (off,        on,  maki::event<button_press>, turn_light_on)
    (on,         off, maki::event<button_press>, turn_light_off)
;

This is hopefully self-explanatory, but here is how it is structured:

• each row of the table represents a possible state transition;
• when source state is the active state and event occurs, the state machine executes action and activates target state.

This gives you a nice overview of what a program does. Moreover, the more complex a state machine is, the more valuable a transition table is for the readability of your code.

[TIP] Transition tables are much more readable when their "columns" are properly aligned. If an alignment plugin exists for your code editor, it's time to install it!

Example program

Here is a test program that uses the transition table we defined above:

#include <maki.hpp>
#include <iostream>

/*
An object of this type is created by the state machine and made accessible to
all the components (actions, guards, states) of the state machine.
More about that later.
*/
struct context{};

//Events are types (more about that later)
struct button_press{};

//States are constexpr objects (more about that later)
constexpr auto off = maki::state_builder{};
constexpr auto on = maki::state_builder{};

//Actions are constexpr objects (more about that later)
constexpr auto turn_light_on = maki::action_v([]
{
    std::cout << "Light is on\n";
});
constexpr auto turn_light_off = maki::action_v([]
{
    std::cout << "Light is off\n";
});

//The transition table
constexpr auto transition_table = maki::transition_table{}
    //source,    target, event,                     action
    (maki::init, off)
    (off,        on,  maki::event<button_press>, turn_light_on)
    (on,         off, maki::event<button_press>, turn_light_off)
;

//The configuration of the state machine
constexpr auto machine_conf = maki::machine_conf{}
    .transition_tables(transition_table)
    .context_a<context>()
;

//The state machine
using machine_t = maki::machine<machine_conf>;

int main()
{
    //Instantiation of the state machine.
    //Initial state is `off`.
    auto machine = machine_t{};

    //Process a button press event. This will call turn_light_on() and activate
    //the `on` state.
    machine.process_event(button_press{});

    //Process a button press event again. This will call turn_light_off() and
    //activate the `off` state.
    machine.process_event(button_press{});

    return 0;
}

The output of this program is the following:

Light is on
Light is off
